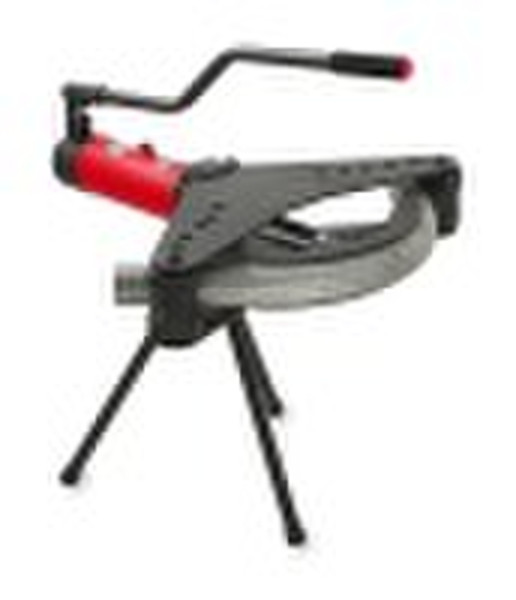

Hydraulic pipe bender

HYDRAULIC PIPE BENDER(CWG) Item 2"3" BENDING Dia.(mm) φ21.3-φ60 2" φ21.3-φ88.5 3" CAPACITY Thickness(mm) 2.75-5 2.75-5 Max.distance of run(mm) 250 320 Max. operating force(N) ≤300 ≤410 Bending angle(rad) π /2≤α<π π /2≤α<π OPERATION Unloaded ≤30 ≤110 TIMES Loaded ≤60 ≤220 Net weight(kg) 52 118 DIMENSIONS Length(mm) 730 760 Width(mm)665 875 Height(mm) 730 715 Two independent cylinders, one cylinder for no loading progress, another one for bending,more laborsaving than anyone else, such as Rothenberger and EGAmaster.
